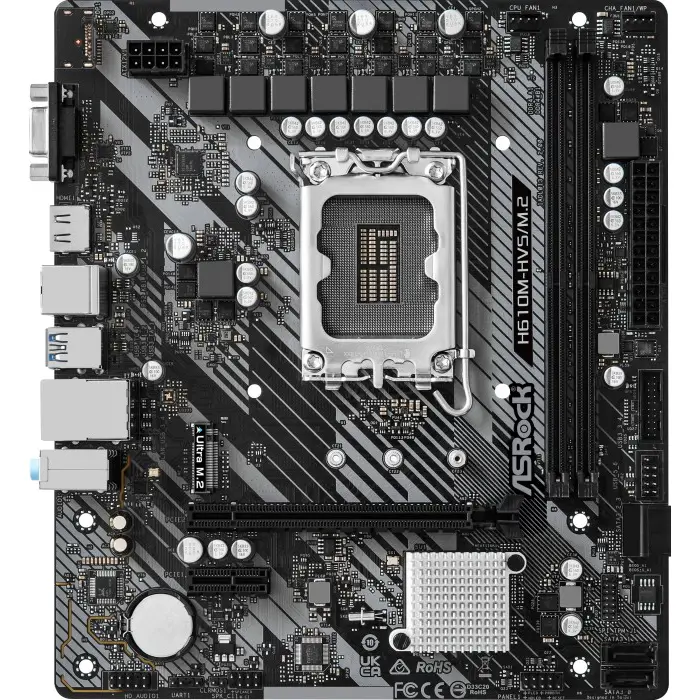

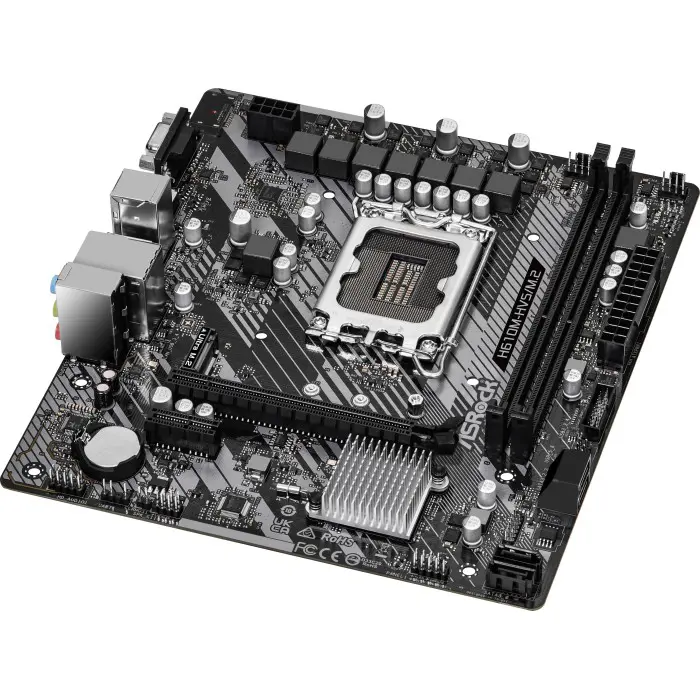

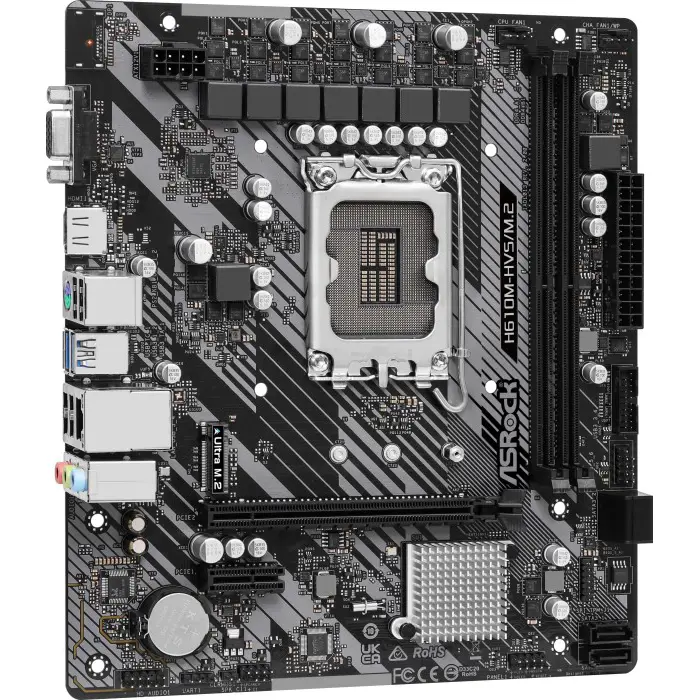

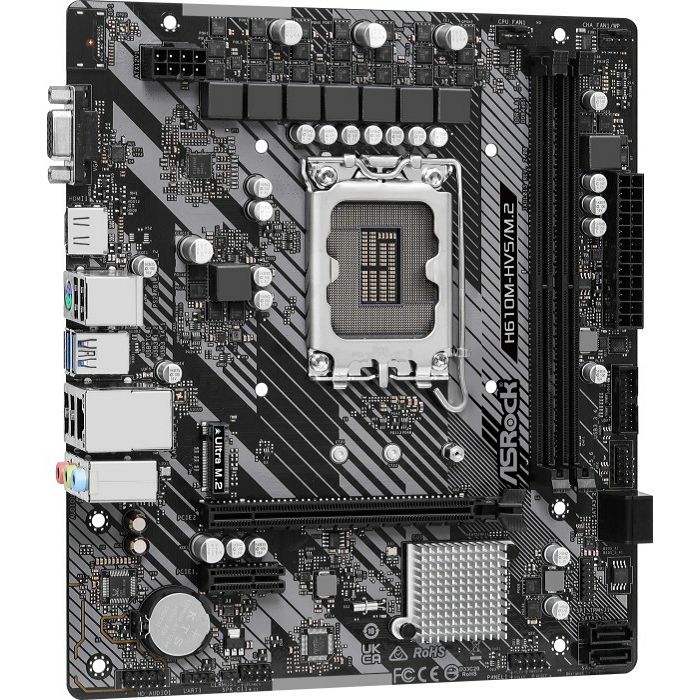

Asrock H610M-HVS/M.2, DDR4, s1700, 90-MXBJJ0-A0UAYZ

shape factor
µATX
Socket
Intel 1700
chipset
Intel H610
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
2x DDR4 DIMM, dual PC4-25600U/?DDR4-3200, max. 64GB (UDIMM)
Extension slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242)
external connectors

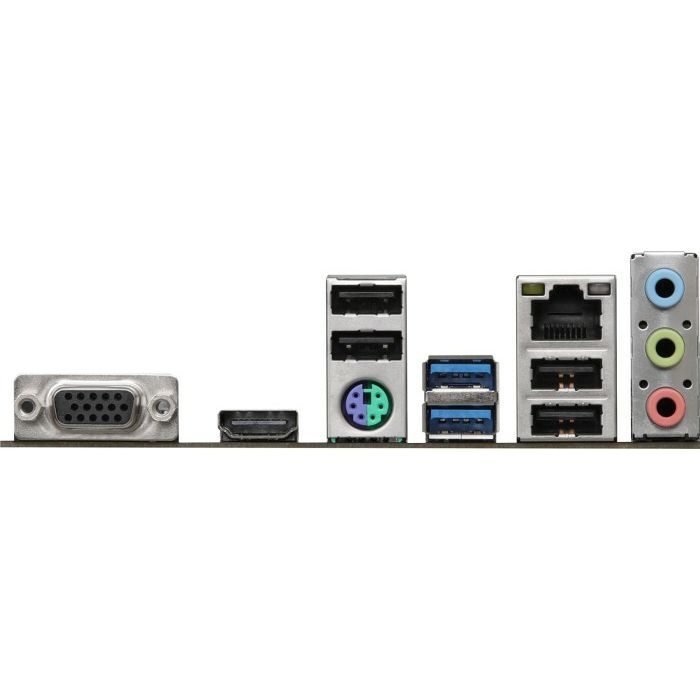

1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 2x USB-A 3.0 (5Gb/?s, H610), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/?2 Combo
Internal connectors
1x USB 3.0 Header (5Gb/?s, 2x USB 3.0, H610), 1x USB 2.0 header (480Mb/?s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling
1x CPU fan 4-Pin, 1x fan/?pump 4-Pin
Header Lighting
not available
buttons/Switches
not available
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
not available
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU
12x 48A SM4508/?12x SM4373
MOSFETs SoC
2x 48A SM4508/?2x SM4373
