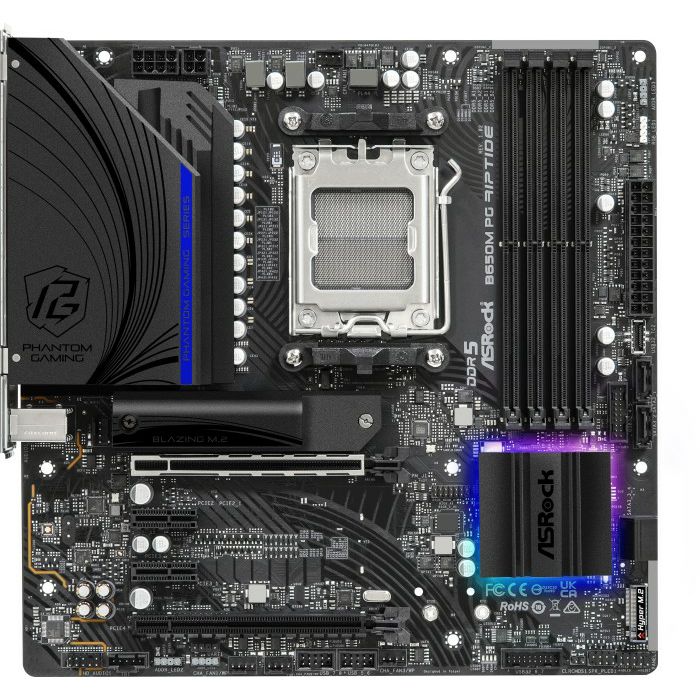

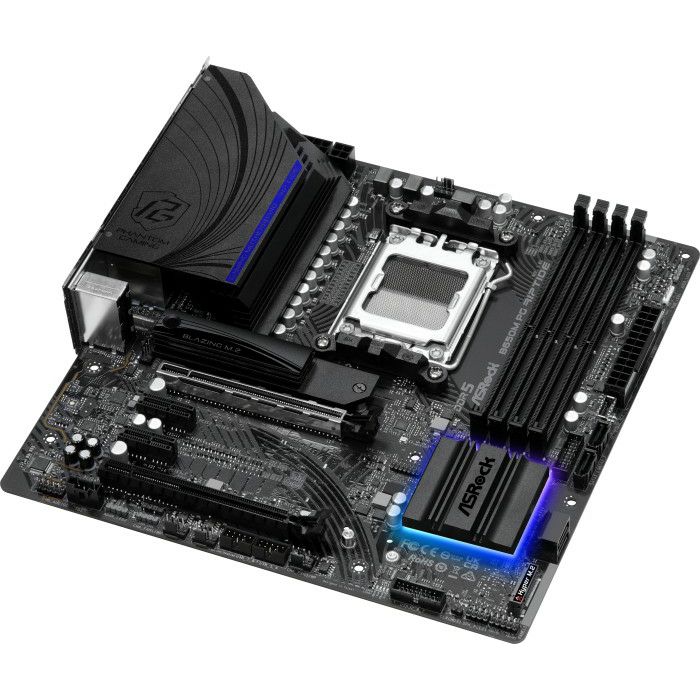

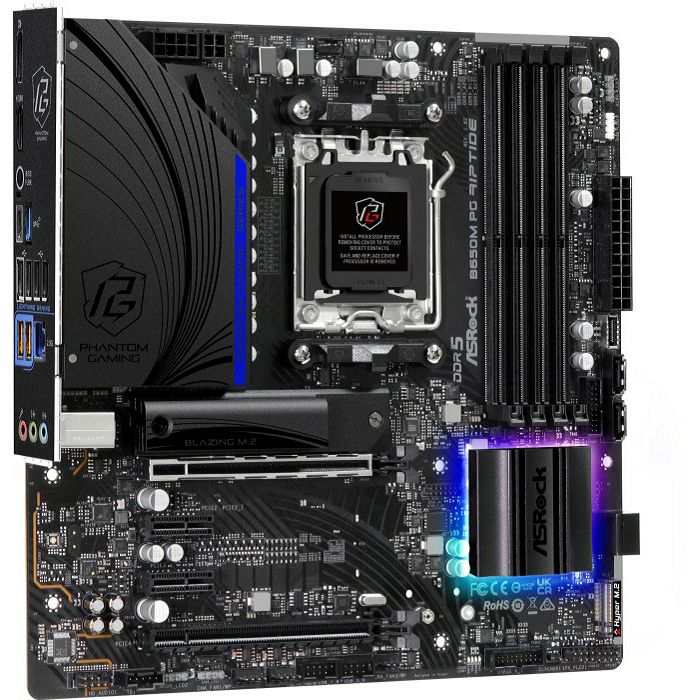

Asrock B650M PG Riptide, AM5, 90-MXBJ90-A0UAYZ

shape factor
µATX
Socket
AMD AM5
chipset
AMD B650
CPU-Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-49600U/?DDR5-6200 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260)

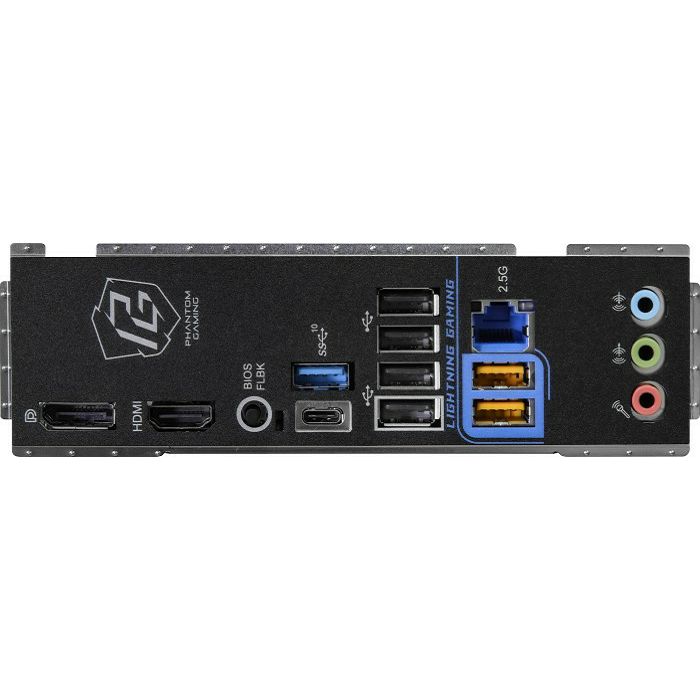

external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack
Internal connectors
1x USB-C 3.0 Key-A Header (5Gb/?s), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 3x fan/?pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?10 (B650)
Multi-GPU
AMD 2-Way-CrossFireX (x16/?x4)
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM
14 virtual phases (12+2), 6 real phases (4+2), PWM-Controller: not specified
MOSFETs CPU
12x 50A SiC634
MOSFETs SoC
2x 50A SiC634
Lighting
RGB, 1 zone (chipset cooler)
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (AMD fTPM)
