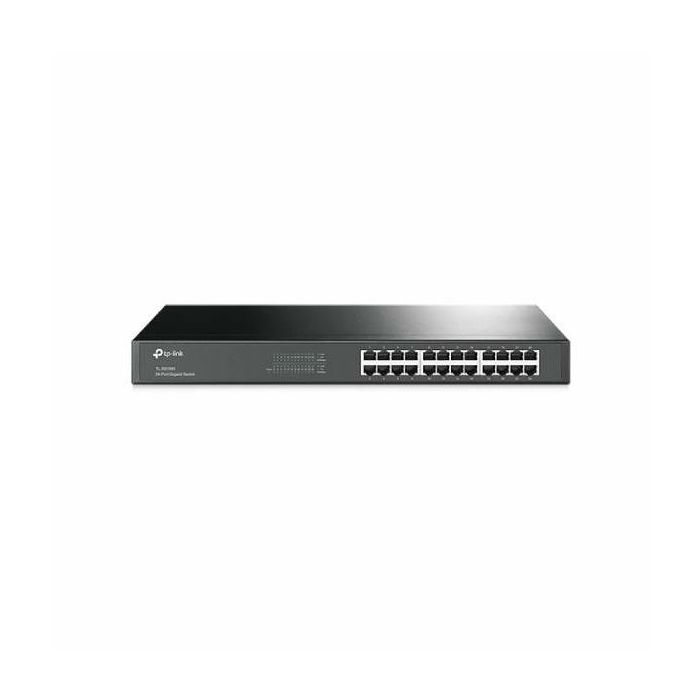

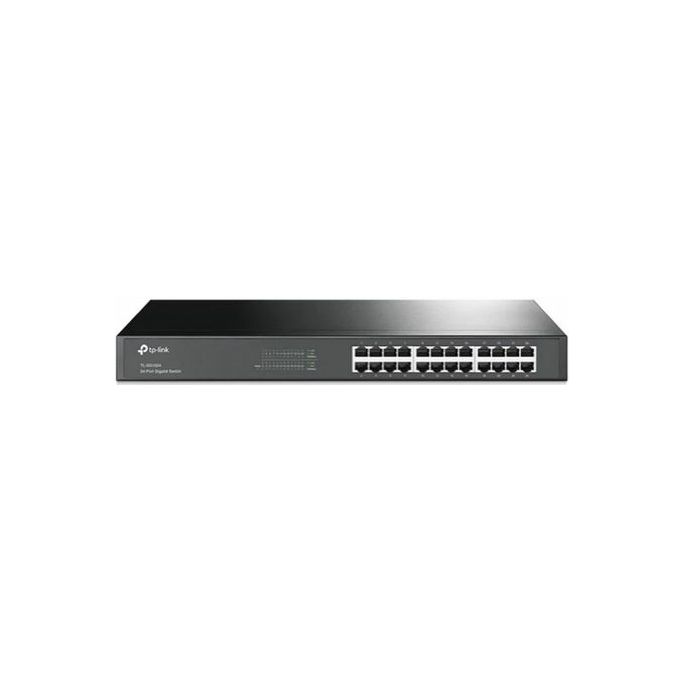

TP-Link Switch TL-SG1024, 24-Port Gigabit Rackmount Switch

Opis/specifikacija:

Features
- All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
- Supports Auto-MDI/MDIX function
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
- Store and forward Switching scheme

Specifications
- Standards and Protocols:
* IEEE802.3, 802.3u, 802.3ab, 802.3x
* CSMA/CD, TCP/IP
- Basic Function:
* Wire-speed Performance
* MAC Address Auto-Learning and Auto-aging
* IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
- Backbound Bandwidth: 48Gbps
- MAC Address Table: 8k
- Forwarding Rate:
* 10BASE-T: 14880pps/port
* 100BASE-TX: 148800pps/port
* 1000BASE-T: 1488000pps/port
- Transmission Method: Store-and-Forward
- Ports: 24× 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Network Media:
* 10Base-T: UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 100Base-Tx: UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 1000Base-T: UTP category 5, 5e cable (max. 100m)
- LED Indicators: Power, Link/Act (1000Mbps, 10/100Mbps)
- Safety & Emission: FCC, CE
- Dimensions (W×D×H): 440×180×44 mm
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Power: 100-240VAC, 50/60Hz
