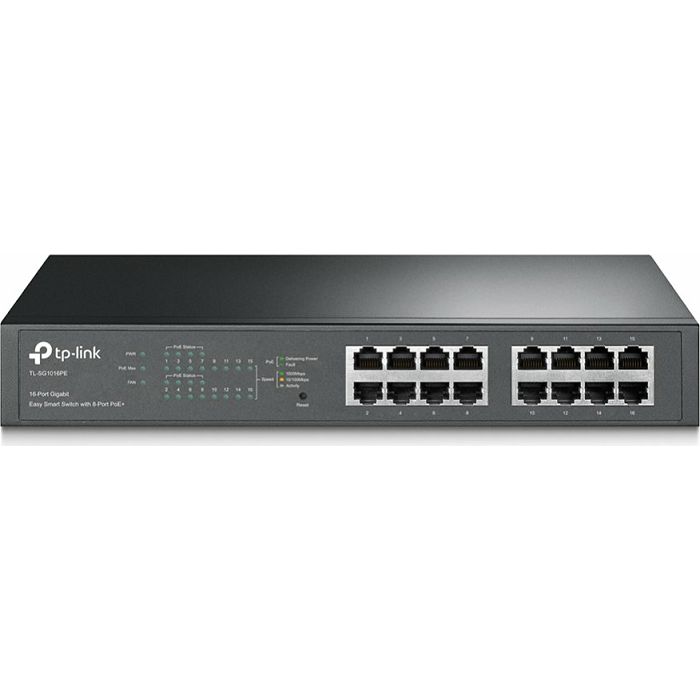

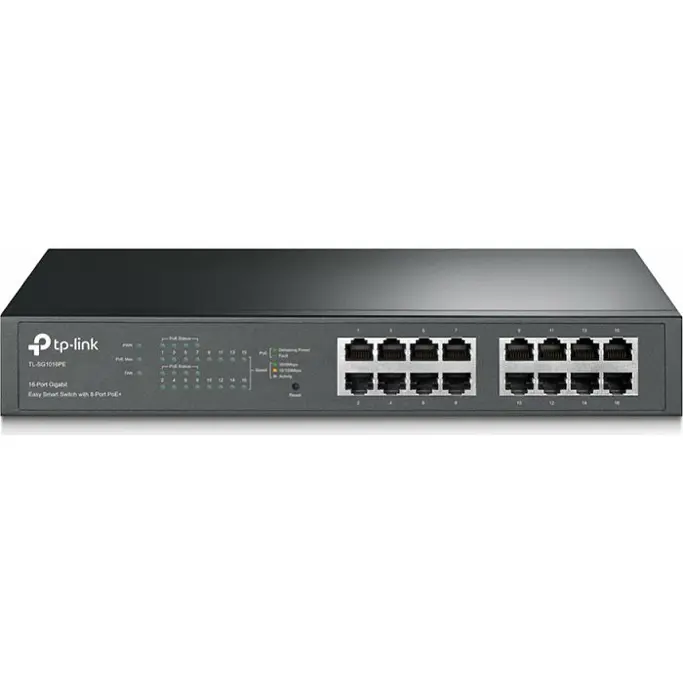

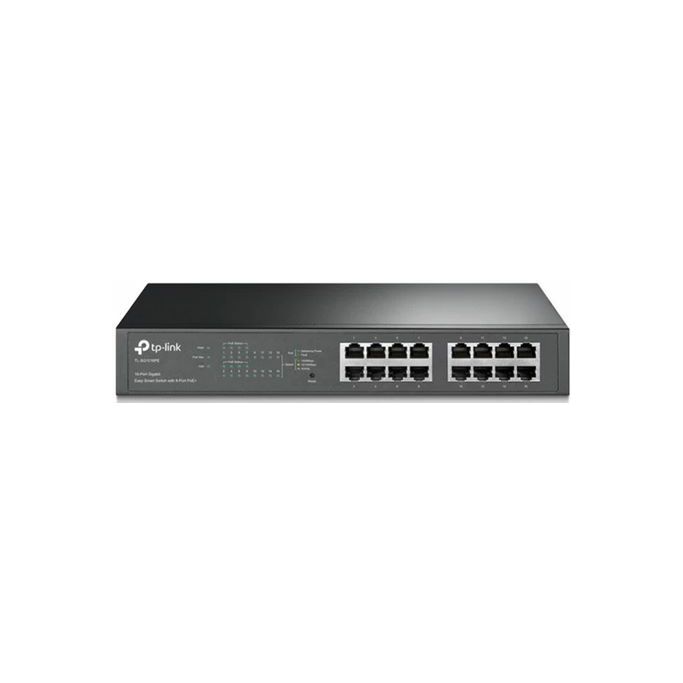

TP-Link TL-SG1016PE, 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

Opis/specifikacija:

WHAT THIS PRODUCT DOES
- The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard
- It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable
- With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones
- Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network

HOW THIS PRODUCT WORKS
- 8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s)
- In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones

OVERLOAD ARRANGEMENT
- TL-SG1016PE has a priority function which helps protect the system when its power is overloaded
- If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port

PORT PRIORITY FUNCTION
- Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded
- For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W)
- If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6

Features
- 16× 10/100/1000Mbps RJ45 ports
- Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration

Specifications
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
- Fan Quantity: 1
- Physical Security Lock: Yes
- PoE Ports (RJ45):
* Standard: 802.3 af/at compliant
* PoE Ports: Port 1 to Port 8
* PoE Power Budget: 150 W
- Dimensions (W×D×H): 294×180×44 mm
- Mounting: Rack Mountable/ Desktop
- Max Power Consumption:
* 8.07 W (110 V/ 60 Hz with no PD connected)
* 177.67 W (110 V/60 Hz with 150 W PD connected)
- Max Heat Dissipation:
* 27.52 BTU/h (with no PD connected)
* 605.85 BTU/h (with 150 W PD connected)

PERFORMANCE
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.8 Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 10 KB

SOFTWARE FEATURES
- Quality of Service:
* Support Port-Based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Management: Web-based GUI, Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
