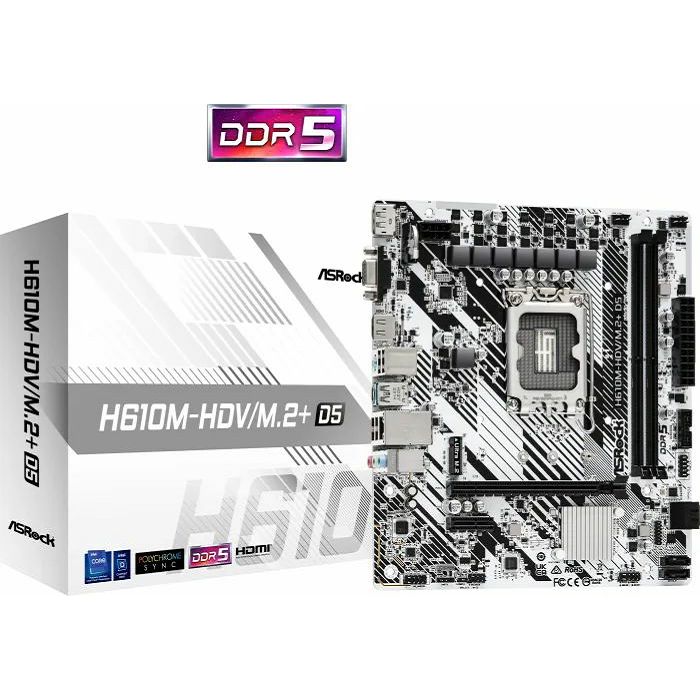

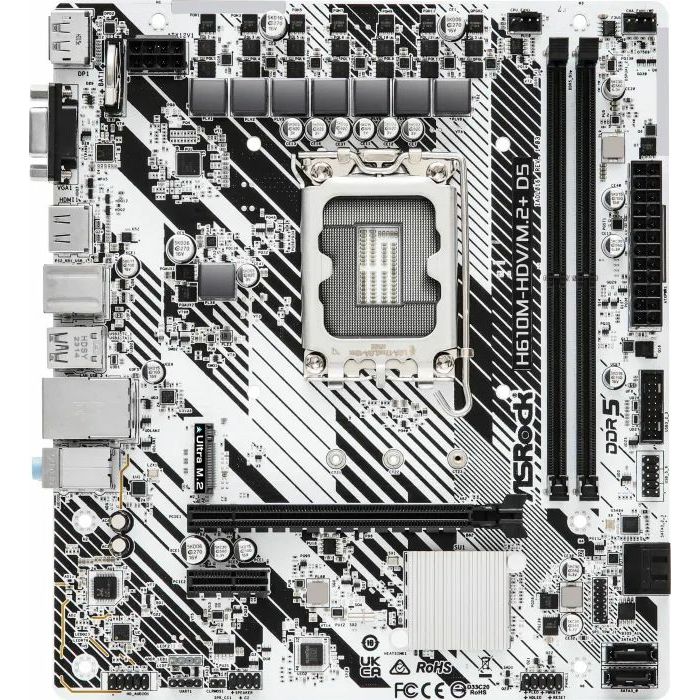

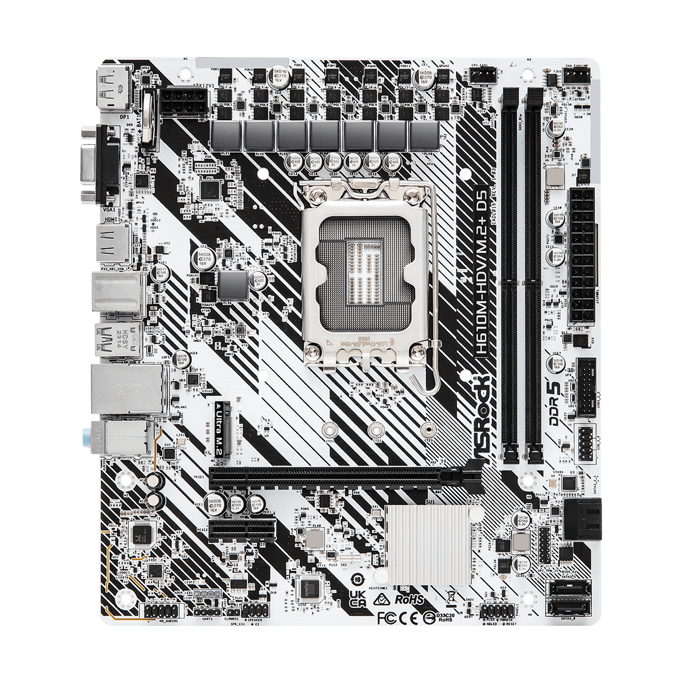

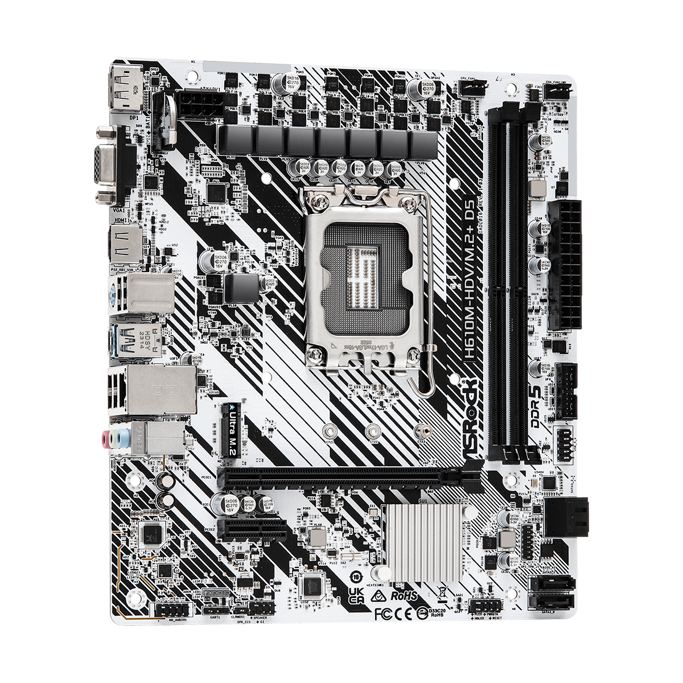

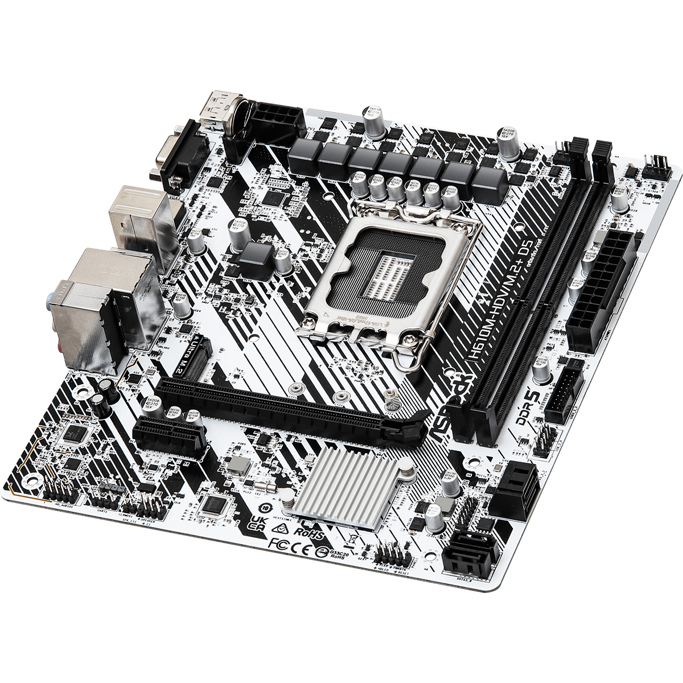

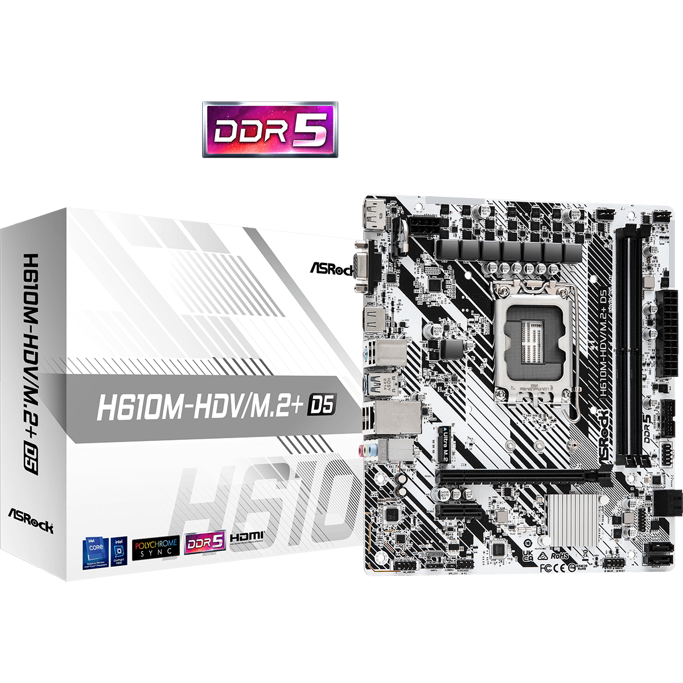

Asrock H610M-HDV/M.2+ D5, DDR5, s1700, 90-MXBM50-A0UAYZ

Form factor µATX
Plinth Intel 1700
Chipset Intel H610
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR5 DIMM, dual PC5-44800U/DDR5-5600, max. 64GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242)
External connections 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s, H610), 1x USB-A 3.0 (5Gb/s, H610), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x Jack, 1x PS/2 Combo
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0, H610), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x TPM header, 1x speaker header, 1x chassis intrusion header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin
Header Lighting 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level N/A
Multi-GPU N/A
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 7 virtual phases (6+1)
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, Onboard TPM 2.0 support (Intel PTT), White Build compatible (PCB white)
