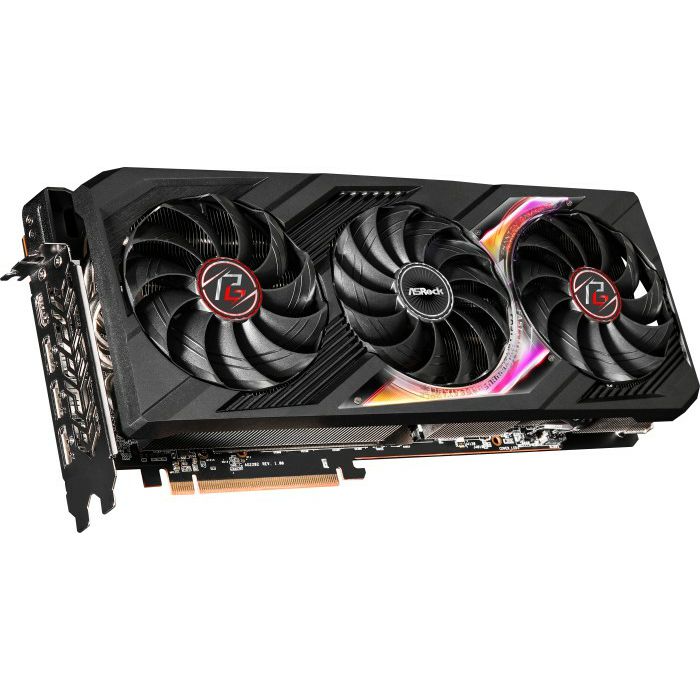

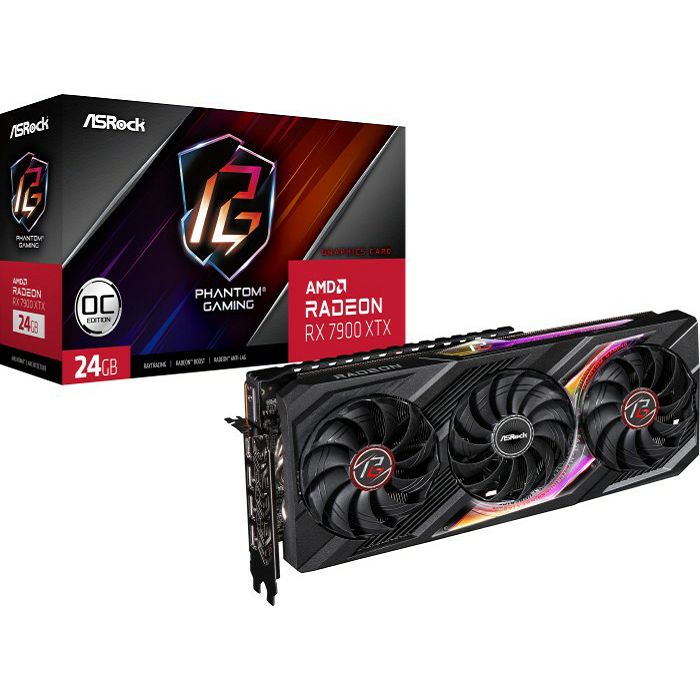

Asrock RX7900XTX Phantom Gaming 24GO, 24GB GDDR6, 90-GA3YZZ-00UANF

GPU AMD Radeon RX 7900 XTX
Memory 24GB GDDR6, 384bit, 20Gbps, 2500MHz, 960GB/s
Overclocking +115MHz Boost, +155MHz Game
Clock Boost 2455-2615MHz
Takt Basis unknown
Cooling 3x axial fan with 0dB zero-fan mode
TDP/TGP 355W (AMD)
Electricity connections 3x 8-pin PCIe

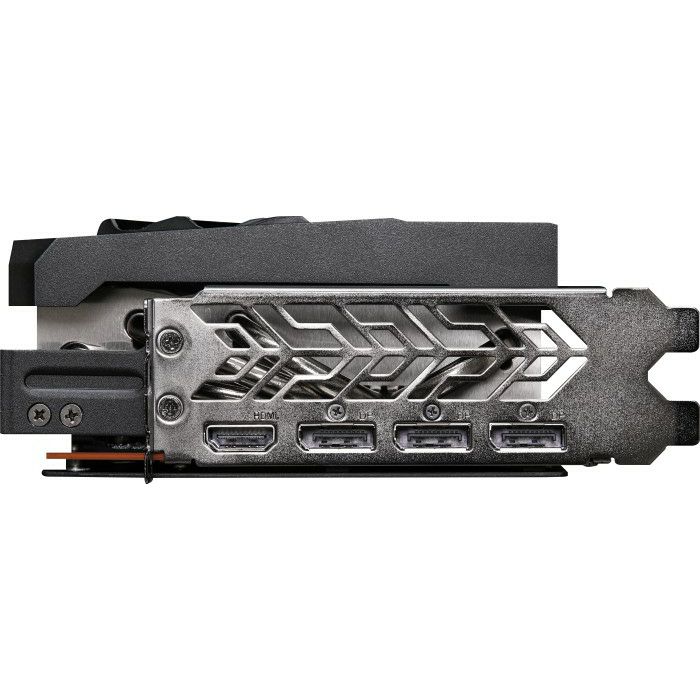

Interfaces 1x HDMI 2.1, 3x DisplayPort 2.1
Connection PCIe 4.0 x16
Particularities Backplate, LED lighting (RGB), RGB synchronization (3-pin ARGB)
Overall depth Triple Slot (2.8 Slots)
Dimensions 330x140x57.6mm (LxWxH)
Construction PCIe card (full height)
Slot bracket full height
Computing power N/A (FP16), N/A (FP32), N/A (FP64)
Chip Architecture RDNA 3 (from 2022/Q4)
Chip designation Navi 31 XTX
Chip configuration 96CU (6144 ALUs / 384 TMUs / 192 ROPs), 96 RT cores, 6MB L2 cache, 96MB L3 cache
Chip manufacturing TSMC 5nm + TSMC 6nm
Chip size 533mm2, multi-chip module (6 MCM chiplets), 58 billion transistors
Chip Functions Raytracing, AV1 Decode, AMD Infinity Cache (96MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
